Wall Top Constraint

When you are using the wall tool, you should never leave the wall set to an unconnected height. This is because the Structural Engineers require the walls to be associated to Levels.

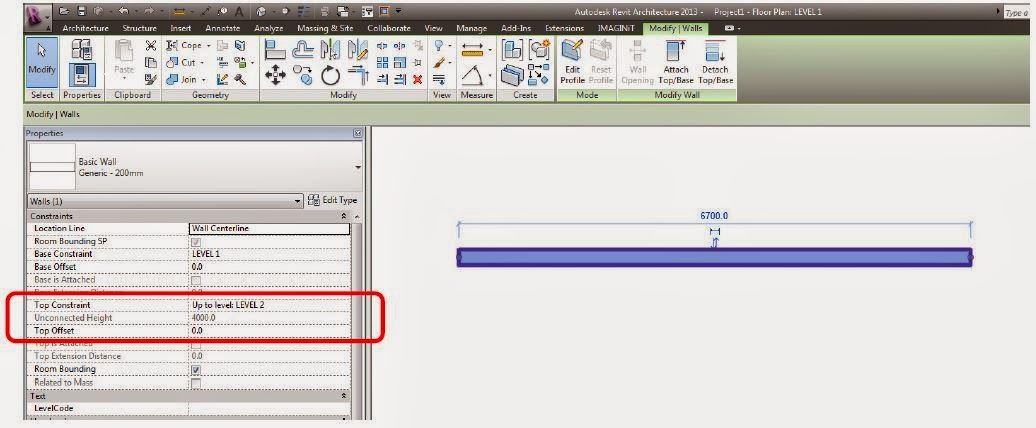

If you have a wall selected ensure that the wall has a Top Constraint level and utilise the Top Offset Parameter.

Remember: The walls can utilise the same top constraint level as the base constraint with the top offset giving it the height.
